Wood Fired Pellet Grills

Grill Smarter. Eat Better.

Green Mountain Grills, Spring Creek Repair Dorchester Nebraska

TEMPERATURE CONTROLLED Wood-Feeding

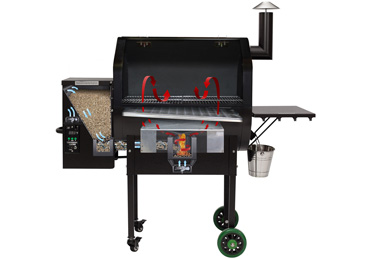

A motor turns the auger which feeds pellets into the firebox. There, a hot rod automatically ignites the pellets, and a combustion fan below keeps them burning. Vents vertically line the inside of the Firebox creating a circular air flow. A fan inside the Pellet Hopper maintains positive pressure which prevents burn-back in the auger tube. When met these two air flows create the ultimate wood burning fire and circulating pure hardwood smoke flavor.



STAINLESS STEEL Heat Distribution

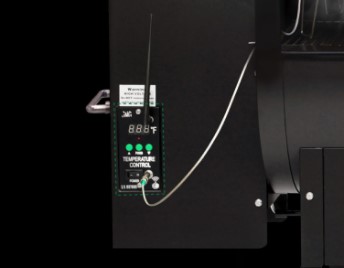

The Heat Shield* that covers the Firebox distributes the heat to both sides of the grill and flows up through the Open Flame Grease Trays and into the convection-style grill chamber. A sensor mounted inside the grill sends data to the on-board computer ten times every second, and the controller adjusts the air and pellet flow to maintain the temperature you set.

Jim
Bowie

Daniel
Boone

Davy
Crockett

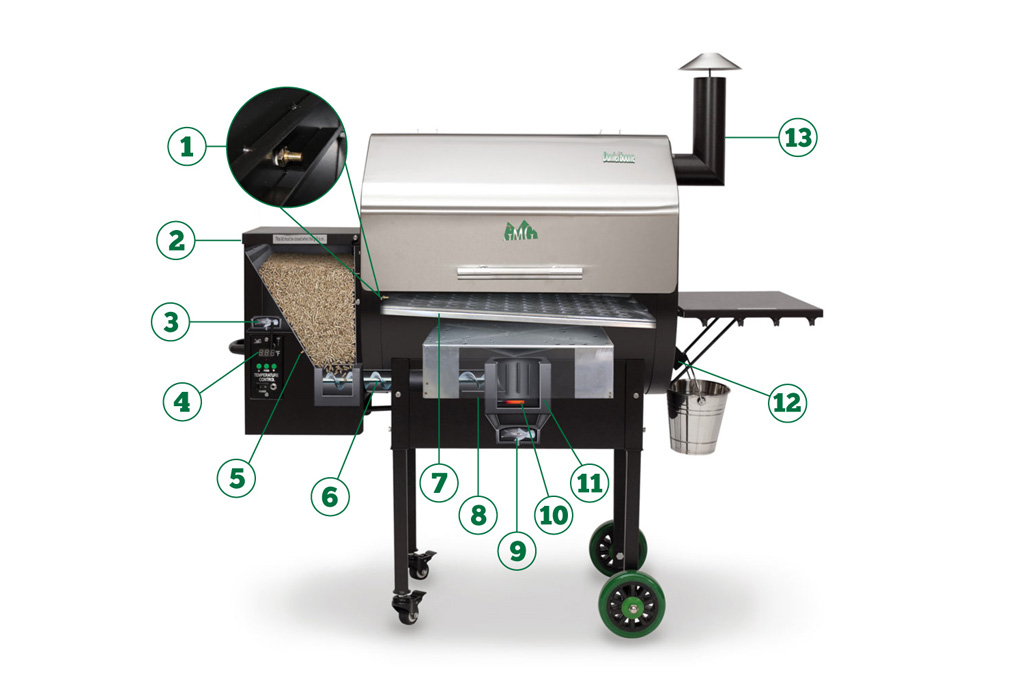

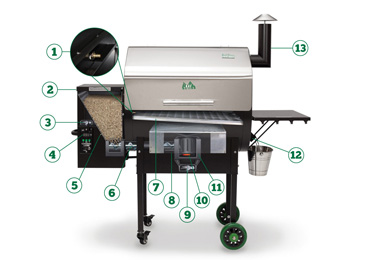

WOOD-FIRED ANATOMY

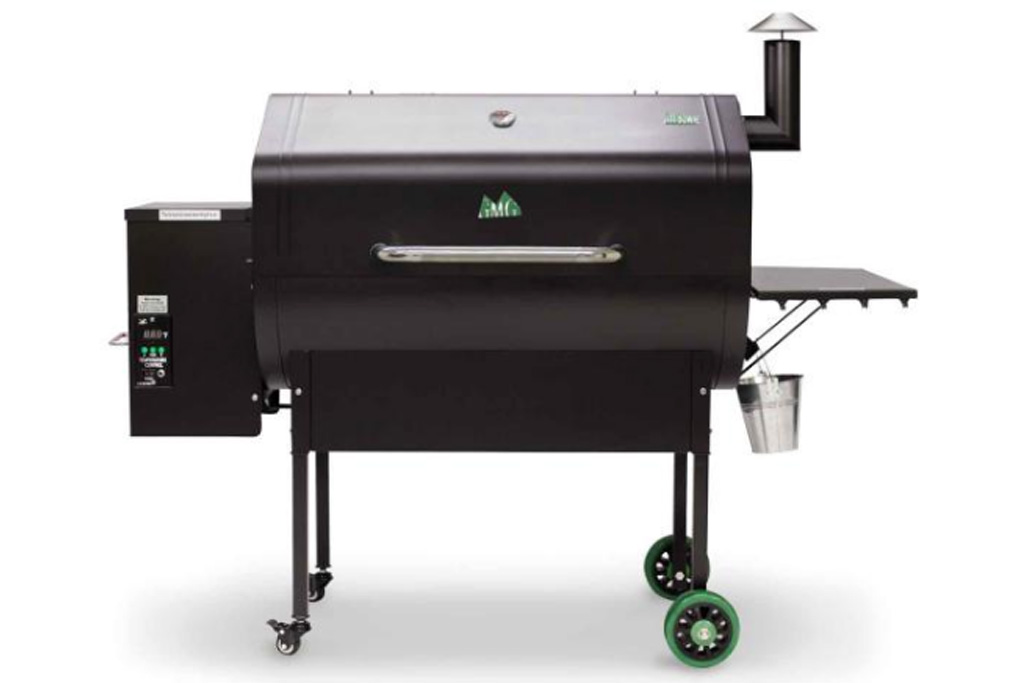

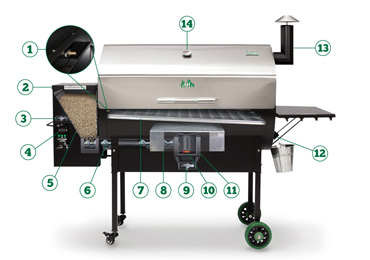

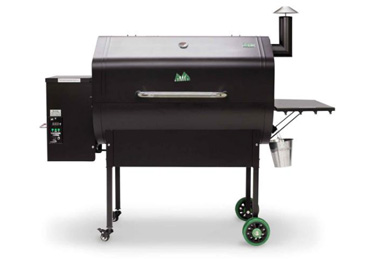

    Jim Bowie

  1. 1. Thermal Sensor
  2. 2. Pellet Hopper
  3. 3. Hopper Fan
  4. 4. Digital Controller
  5. 5. Low Pellet Sensor
  6. 6. Auger
  7. 7. Open Flame Grease Tray





  1. 8. Heat Shield
  2. 9. Combustion Fan
  3. 10. Igniter
  4. 11. Firebox
  5. 12. Drip System
  6. 13. Chimney
  7. 14. Dome Thermometer

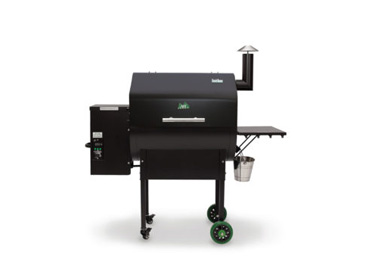

    Daniel Boone

  1. 1. Thermal Sensor
  2. 2. Pellet Hopper
  3. 3. Hopper Fan
  4. 4. Digital Controller
  5. 5. Low Pellet Sensor
  6. 6. Auger
  7. 7. Open Flame Grease Tray





  1. 8. Heat Shield
  2. 9. Combustion Fan
  3. 10. Igniter
  4. 11. Firebox
  5. 12. Drip System
  6. 13. Chimney

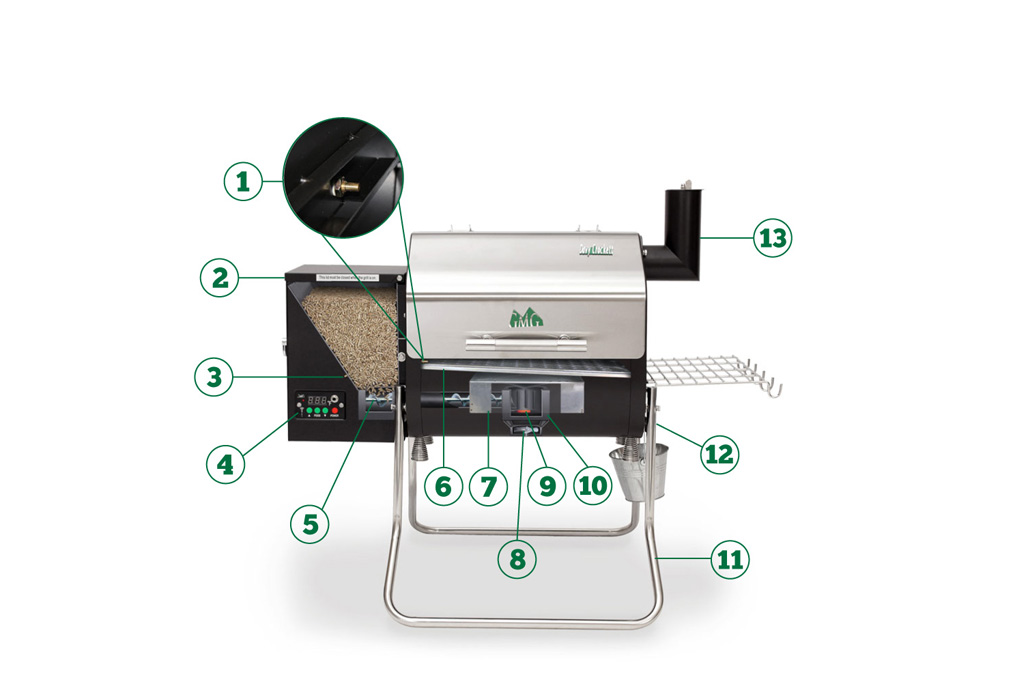

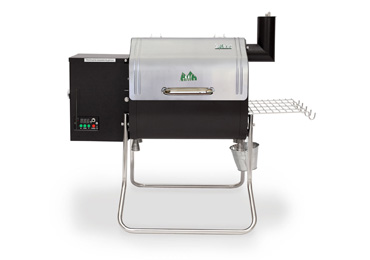

    Davy Crocket

  1. 1. Thermal Sensor
  2. 2. Pellet Hopper
  3. 3. Hopper Fan
  4. 4. Digital Controller
  5. 5. Auger
  6. 6. Open Flame Grease Tray
  7. 7. Heat Shield





  1. 8. Combustion Fan
  2. 9. Igniter
  3. 10. Firebox
  4. 11. EZ Fold & Carry Legs
  5. 12. Drip System
  6. 13. Chimney
